0.5T/D 1T/D Oil Refinery Machine Oil Refining Plant
0.5T/D 1T/D Oil Refinery Machine Oil Refining Plant
0.5T/D 1T/D Oil Refinery Machine Oil Refining Plant

0.5T/D 1T/D Oil Refinery Machine Oil Refining Plant

Categories:Cooking oil processing machine
Capacity: 500kg~20ton per day
Productivity:High Rate
Power:Different on Tons
Weight:High Level/High quality and high yields in milling
Applications:Oil refining oil refinery machine edible oil refinery plant Food & Beverage Factory, Food Shop, Food & Beverage Shops
Tel:+86 15136160836

parameter

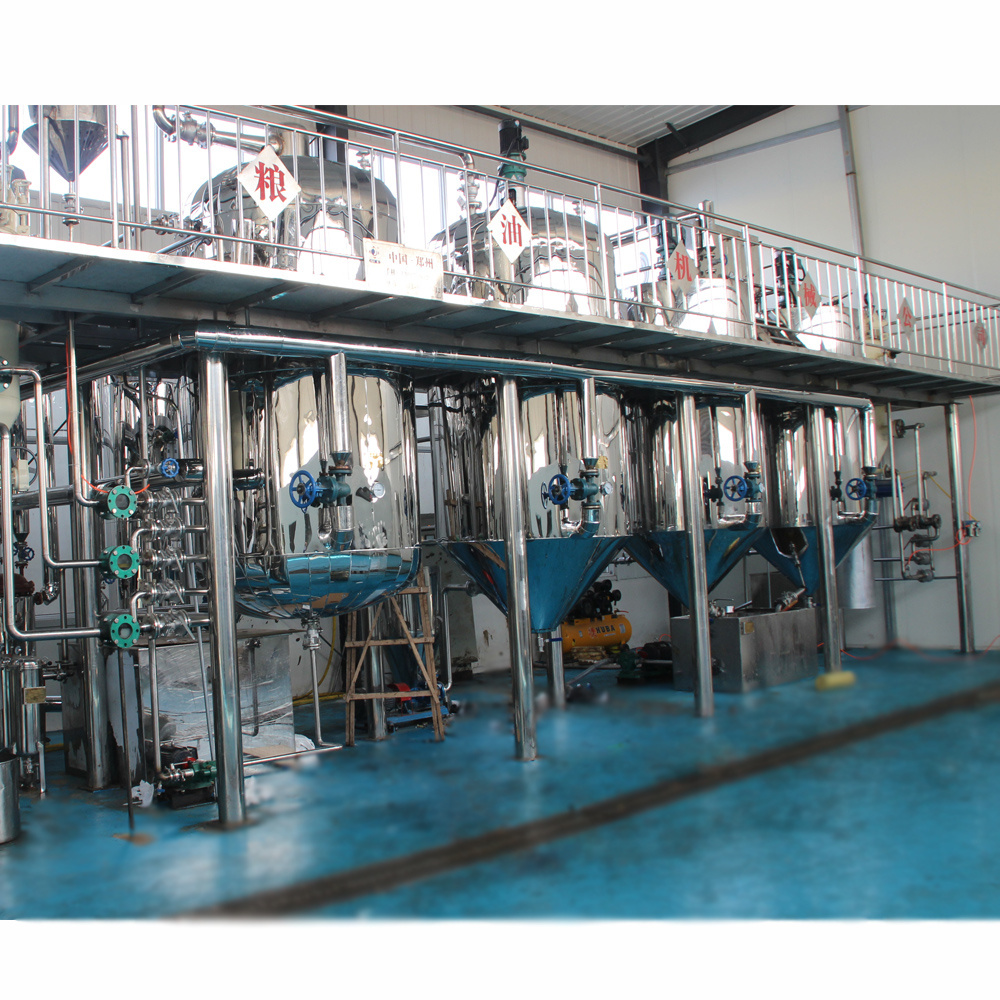

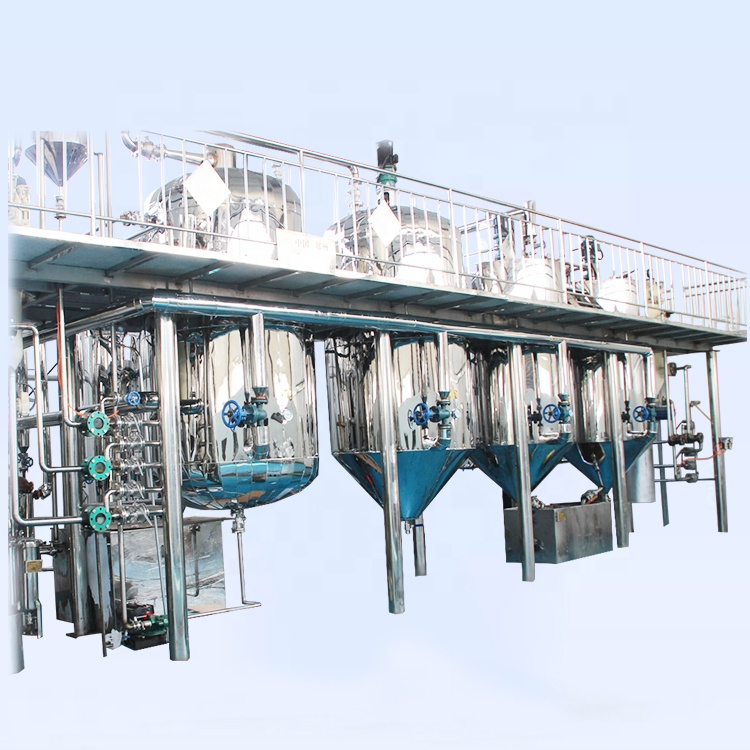

Cooking Oil Refining Plant/small Scale Palm Oil Refining Machinery/refinery Plant For Edible Oil


The sub-critical oil extraction plant is widely used for pressing oil from coconut, palm fruit, palm kernel, mustard, avocado, sesame, corn germ, soya, groundnut, castor, hemp, black seed, rice bran, corn bran, sunflower, soyabean, neem, lemongrass, cottonseed, fish, moringa, nuts, almond, prickly pear, cinnamon, pepper, lavender, eucalyptus, rapeseed, canola, cococa, rosehip, jojoba, argan, beans, copra, peppermint, maize, shea butter, sandalwood, black seed, baobab, flowers, cashew nut, linseed, bearberry, rosemary, animal fat, black pepper, black pepper, citronella, evening primrose, cinnamon leaf, bamboo, cinnamon bark, cardamom, wooden, agarwood, black cumin, insect, marigold etc..

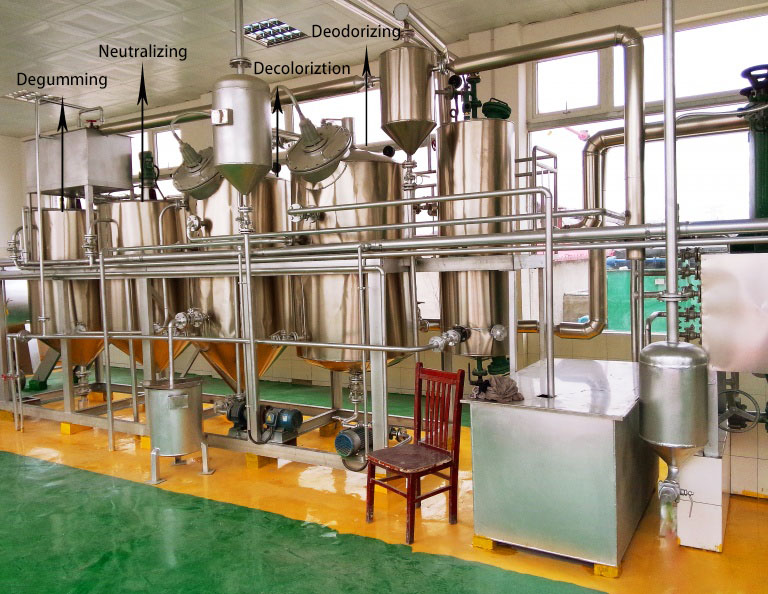

Flow Chart of Refining Workshop

Crude Oil→ Filter→ Degumming→ Deacidification→ Decoloring→ Deodorizing→ Dewaxing→ Defeat→ First Grade Oil

1. Decoloring tank: bleach pigments from oil.
2. Deodorizing tank: remove the un-favored smell from decolorized oil.
3. Oil furnace: provide enough heat for the refining sections which need high temperature of 280℃.
4. Vacuum pump: provide high pressure for bleaching, deodorization which can reach 755mmHg or more.
5. Air compressor: dry the bleached clay after bleaching.
6. Filter press: filter the clay into the bleached oil.
7. Steam generator: generate steam distillation.


Detail

Palm oil refining machine refinery plant for oil press machine


Sub-critical Extraction is designed for extracting of active substance from natural plants, animals and microorganism.
The oil extract equipment is ideal choice for extracting high-quality health care oil, herbal oil, essential oil, biological proteins and natural pigments, etc
Main Extracting Solvent: liquid propane, butane (4#), methyl ether, tetrafluoroethane, liquid ammonia.
Extracting Method of Oil Extraction Equipment: Counter-current extraction; Room temperature extracting, low temperature desolventizing (below 40℃)
Working Pressure:0.3~0.7MPa
Extract Product:
For oilseeds, oil and defatted protein can be extracted directly by this equipment.
For natural colours, you can get pasty Extractum or Oleoresin (you need purification equipment for after-treatment).
For herbal, flower and spice, you can get Extractum or Oleoresin, dewaxing device is needed additional to get final essential oil.







 Complete Solvent Extraction Plant

Target User: businessman, processing enterprises and factory.
Output: 500kg~20ton per day (300~15000L per batch)
Application: Industrial extraction production of high-quality Oils & Oleoresins, natural food colours, and vegetable protein.
